Digital analog air flow bidirectional measurement sensor

Product Overview

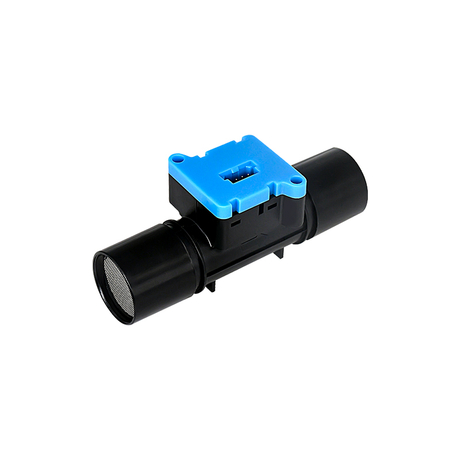

The AFM3000 is a digital flow meter sensor specifically designed for ventilators. It provides highly accurate measurements of the flow of air, oxygen, and other non-corrosive gases. Featuring a specially designed airflow duct within the sensor, the AFM3000 ensures minimal pressure loss in the airflow. This makes it ideal for applications requiring precise flow measurements, such as in medical ventilators.

Using a 5V supply voltage, the AFM3000 outputs measurements using a digital I2C interface. Measurements are internally calibrated and temperature compensated. The sensor is internally connected to a thermal chip and a high-performance 24-bit CMOS microprocessor. The gas flow is measured by the thermal sensor, resulting in a very fast signal processing time and the highest measurement accuracy compared to similar products.

Product Parameter

Application

• Automobile Engine

Install MAF sensor in the air intake pipe of automobile engine, real-time monitor the air flow into the link, calculate the gas mixture concentration in the cylinder, optimize the engine combustion, improve fuel economy.

• Industrial Drying

MAF sensors are installed in the airflow pipeline of industrial dryers to monitor changes in air flow to control the heating temperature, ensure uniform heating of materials and reduce energy loss.

• Air conditioning airflow

Installation of MAF sensor in the airflow output of air conditioner, feedback airflow signal, by comparing the set value to adjust the speed of the fan, to achieve accurate air conditioning airflow control.

• Gas flow

Installation of MAF in gas meter or industrial gas flow pipeline to measure real-time gas flow through the amount of gas consumption measurement statistics, to achieve accurate billing.

• Aircraft Engine

MAFs are installed in front of aircraft turbojet engines to detect air flow and velocity, calculate air intake, and ensure optimal combustion efficiency of the engine at different flight altitudes.
